The Art of Oak Joinery: Traditional Techniques Behind Oak Timber Structures Luxury Craftsmanship

Traditional oak joinery is essential to crafting sturdy structures. No doubt, it's the great and graceful oak beams that'll first catch the eye when admiring an Oak Timber Structures masterpiece. But, it's the joinery techniques that connect the parts securing the structural integrity for years to come.

Today, we're going to lift the lid and explore common traditional joinery techniques we use here at Oak Timber Structures. So, don't know your mortise from your tenon? Unsure of the difference between a notch and a dovetail joint? Read on to see why traditional joinery still matters in modern oak structures.

1. Mortise & Tenon Joints

First things first, let’s start with the mortise and tenon joint, the most common traditional joint found in our oak structures.

1.1 What Is a Mortise and Tenon Joint?

Mortise and tenon joints date back thousands of years, some even say it’s the oldest and strongest technique. You'll often find this traditional joinery technique wherever a solid frame is needed… just like in oak structures! This joint involves a protruding rectangular tenon that projects out of the end of a post or beam. The tenon then slots into a mortise cavity carved out of the connecting part of the structure.

For extra stability in oak structures, the tenon includes a hole, or holes, that align with the adjoining part, allowing oak dowels to be inserted and hammered to lock the joint and further reinforce the connection.

In the below picture, you’ll see the process of using this type of joint in the assembly of a gazebo. The mortise and tenon joints are connected and the dowels are prepared and ready to hammer into the aligned holes and trimmed.

1.2 Benefits for Oak Structures

Mortise and tenon joints offer a strong connection making it suitable for many applications, most notably the right angles of the main timber frame. You'll find this traditional joinery technique in most of our oak frames, these joints are the backbone of our joinery. It's also worth noting, mortise and tenon joints offer clean lines and tight attachment for a sleek visual.

1.3 Applications Across Structures

Above you’ll see complete mortise and tenon joints connecting an archway. The robust connection means no need for metal fasteners, preserving the natural beauty of the oak structure without visible hardware. Note the oak pegs, sometimes called dowels, have been trimmed in this example. Some customers may choose to trim the pegs further if they prefer.

2. Notched Joints

Simple but effective, the notch joint is a champion at keeping crossmembers straight and resistant to twisting.

2.1 What Is a Notched Joint?

A notch joint is a connection where a recess is cut into pieces of timber. The notch is the width of a beam, allowing the connecting part to sit snug within the recess. It's a simpler traditional carpentry technique, although still very effective at securing right-angled connections.

2.2 Benefits for Oak Structures

Notch joints act as a lock between timbers and reduce twist and lateral movement. It's a common joint in areas where cross members intersect top plates. So, you'll often find notched timber joints in roofing. In the picture below you can see the oak beam notching ready for assembly.

2.3 Applications Across Structures

Here's a fine example of the clean, interlocked appearance of a notch joint once assembled. You'll likely see them on crossmembers in exposed frameworks such as lean-tos and pergolas.

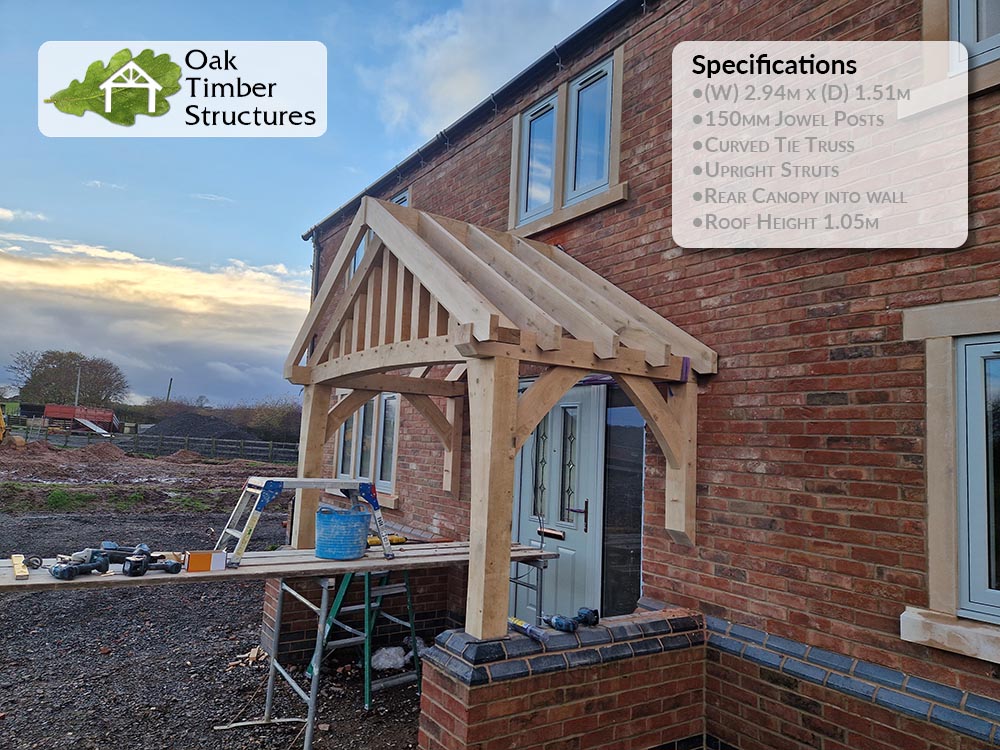

A notch is a broad term though. We also use something called a birdsmouth notch which is a specific type of notch joint. This V-shaped notch is made to the underside of rafters on a pitched roof allowing it to rest securely on a wall plate or beam. Check out an example of birdsmouth cut oak on the rafters of pitched porch roof below.

3. Dovetail Joints (For Crossmembers)

Taking inspiration from the dove, the dovetail joint is a sleek design feature with decorative and useful properties.

3.1 What Is a Dovetail Joint?

A dovetail oak joint is an interlocking joinery technique. It’s most commonly used for connecting two pieces of timber together at a 90-degree angle. On one piece of timber, there’s a wedge, which we sometimes call a tail. Unsurprisingly, this wedge, or tail if you like, resembles the shape of a dove's tail. The wedges slot into hollowed sockets of a similar shape cut into the connecting part.

3.2 Benefits for Oak Structures

The interlocking joint is known for resistance to pulling apart so ideal for horizontal-to-vertical connections. Furthermore, it’s another example of timber framing without screws to keep the pristine appearance. You’ll most likely be familiar with this type of joint in furniture and cabinets but it still translates to larger structures.

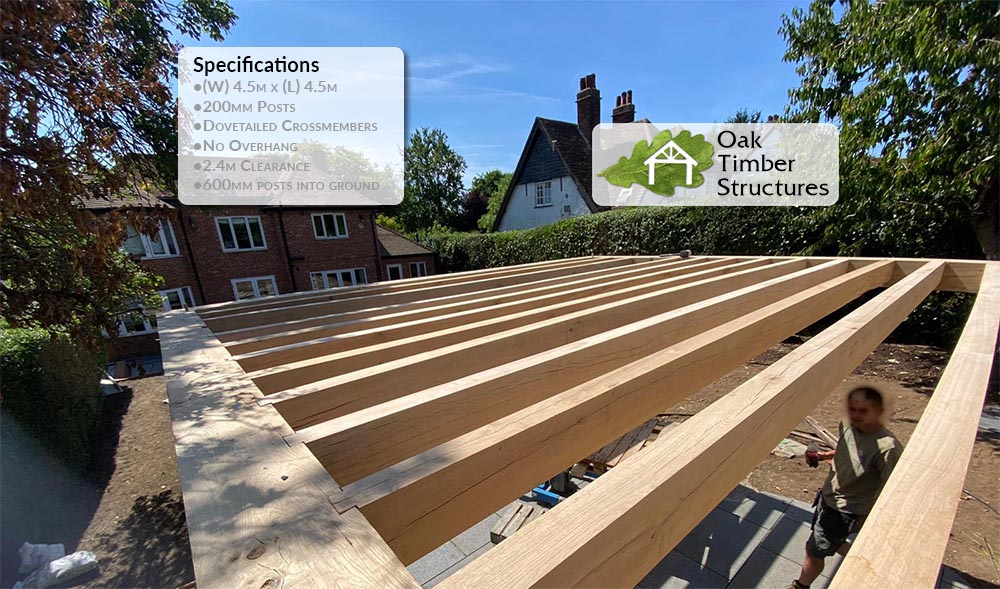

Where crossmembers meet top plates we can use a half lap dovetail for a uniform look that promotes visual interest, an attractive choice in exposed beam structures and a symbol of artisan craftsmanship in bespoke joinery.

3.3 Use in Luxury Structures

On our all new Online Pergola Designer, you can select dovetail joints in the ‘Crossmember Joint’ section. When left exposed the dovetail joints highlight the intricate craftsmanship. The dovetail joints on the crossmembers mean they sit flush with the top plates creating a seamless finish. This design feature creates a modern visual.

4. Scarf Joints

Scarf joints can be problem solvers, meaning you can decorate long spans with oak.

4.1 What is a Scarf Joint?

A scarf joint is a joinery technique to connect two separate beams to make one longer beam. Angled cuts on each mean that the two beams slot together extending the length. When performed with precision, the joint is snug, seamless, and often completely concealed. It's a secure method to create lengthier beams.

4.2 Benefits for Oak Structures

Oak trees have a slow growth rate so obtaining the raw materials for extremely long beams is difficult and time consuming. Generally, beams have a maximum span of 7m. But if you were to want a longer piece, sometimes it’s best to use a scarf joint to get the required span.

4.3 Use in Luxury Structures

If a long beam is required for a project, then we may use this technique. We take on jobs of all sizes so it might be required to get a very expansive beam for structures.

You may find a scarf joint in the length of a multi-bay garage when the width is wider than a single oak beam can reach. However, chances are you won't even see the joint… and that's the point. Hidden in the centre of a tie beam our skilled team makes it close to invisible.

FAQs About Oak Traditional Joinery Techniques

• How strong are mortice and tenon joints in oak?
  Many woodworking enthusiasts will laud the strength of mortise and tenon joints. We’re the same, that’s why they’re a mainstay in our frames. While already strong, when used with a dowel they have the capability to withstand significant loads. It’s a much sturdier connection than screws or nails which are more likely to loosen over time. The opposite is the case for mortise and tenon joints, which actually get stronger over time as changes in the moisture content occur. Furthermore, oak is also a hardwood, so when a mortise and tenon joint with dowels is used in oak, it's a winning formula.
• Can you combine traditional joinery with modern design?
  Totally! You can combine traditional joinery techniques with modern design to great effect. First off, the beauty of oak and skilled craftsmanship will never go out of fashion. But you can blend such craftsmanship with modern touches to create an overall contemporary aesthetic. Touches such as narrower beams and straight lines will go a long way to create a harmonious look offering the best of both worlds.
• Is traditional joinery better than metal brackets?
  With oak joinery techniques they can often stand up to the strength and durability of metal fasteners, this and the cohesive look and natural aesthetic oak joints offer is why they are a corner stone of our structures. Metal can be a quicker alternative which requires less knowhow but since you’ve got woodworkers with a collective 100 plus years’ experience at your disposal you can expect high end sophisticated joinery techniques. Saying that, there are certain scenarios where metal is required. Stainless steel screws for rafters, nails for cladding to name a few. Not forgetting that with our oak doors we offer ironmongery in the shape of hinges.

Get a Bespoke Oak Structure with Heritage Joinery

Handcrafted joinery, when completed with skill not only bolsters the robustness of a structure, but it's also a delicate aesthetic detail, a hallmark of craftsmanship.

Mortise and tenon joints with dowels are the cornerstone to our oak frames, but they’re far from the only traditional joinery technique we use with our structures. With pergolas for example, you can even specify notch or dovetail joints details.

Whether you’re dreaming of a solid oak pergola for your garden, an oak truss for home extension, or an oak garage for your car, our master joiners are ready to take on any oak project

Start designing yours now with our all new Online Designer. With new improvements it’s here to help you design the perfect oak structure for you. Once you're happy with the design, you can leave the joinery work to us. Complete with heritage craftsmanship, when assembled, an Oak Timber Structures structure stands as a statement of enduring beauty and strength.
